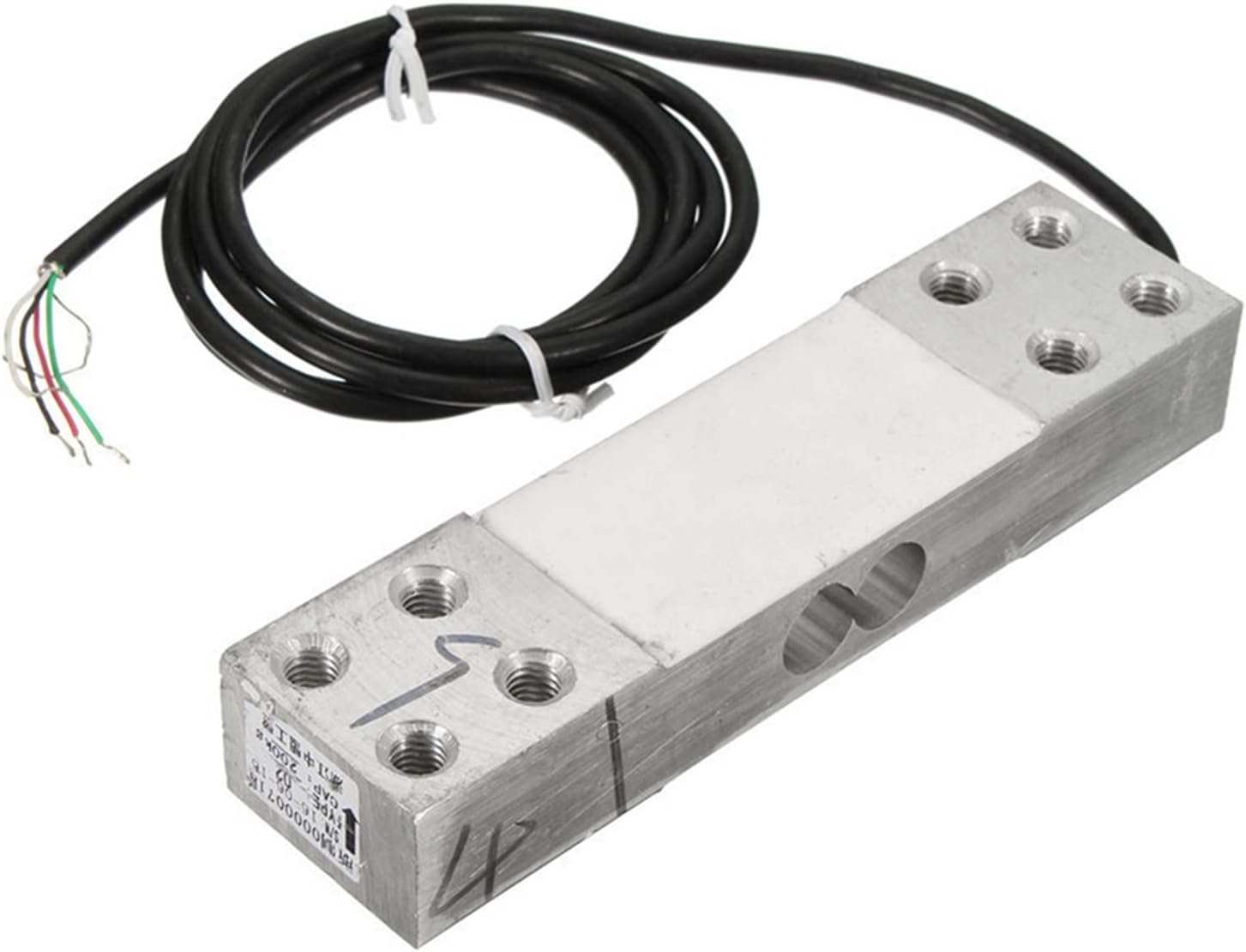

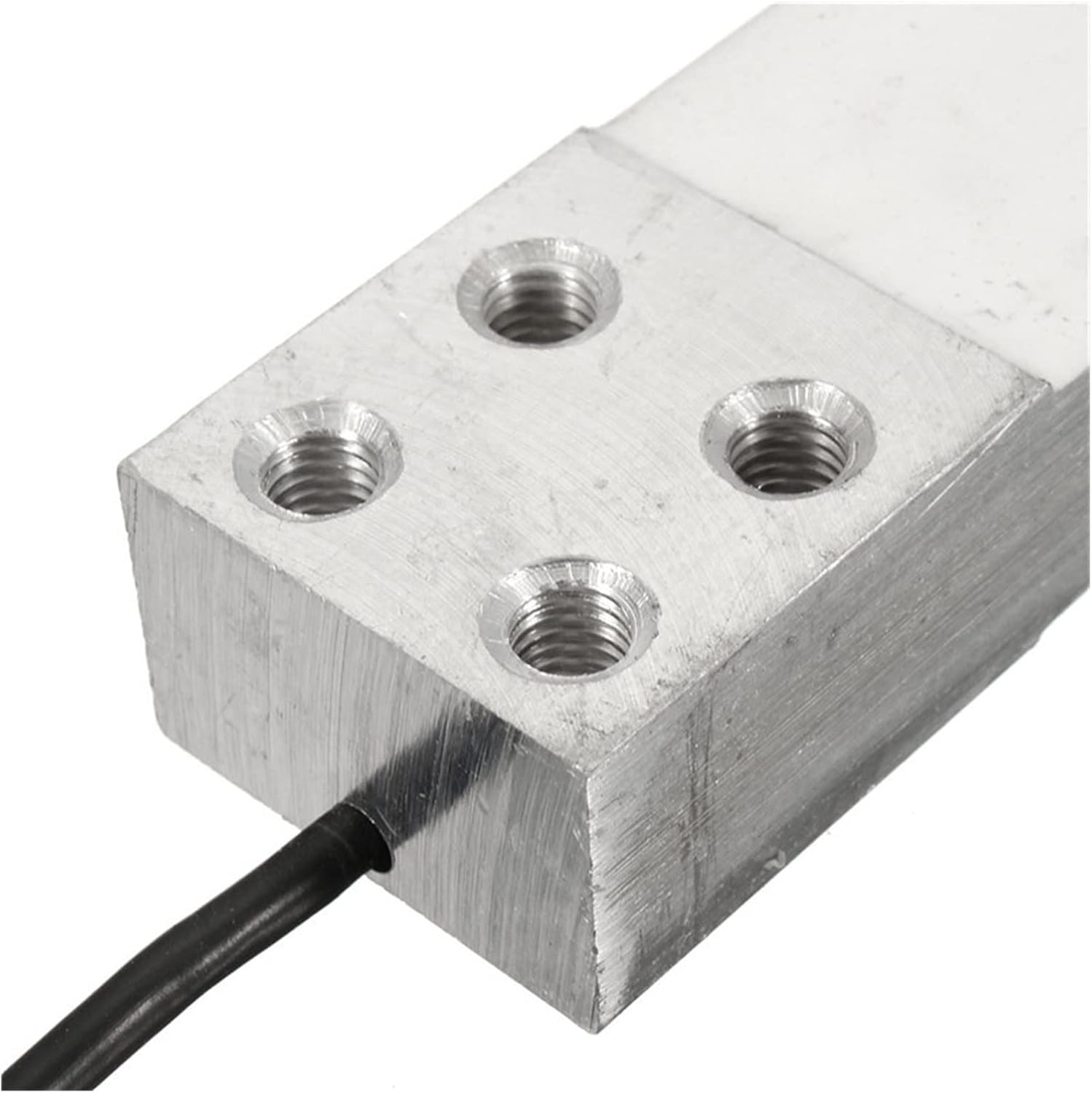

1PCX 200kg Electronic Platform Scale Load Cell Pressure Balanced Cantilever Load Weight Sensor

NOTE: in order add the life of the sensor to prevent damage caused by being overweight . as usual ,200KG sensor only can be used to delivery 200kg. Technical parameters Creep: 0.02% F.S/10min 0:00 Output :2% F.S Input Impedance :405 10 Output impedance :350 3 Insulation resistance :5000M (100VDC) Excitation voltage :5VDC ~ 12VDC Temperature compensation range :10 ~ +40 Operating temperature range: -20 ~ +60 Temperature effect on zero 0.03% F.S/10 Temmp.effect 0.02% F.S/10 Safe overload 120% Ultimate Overload 150% Protection class IP65 Wiring Black Power + , white Power - Red Signal + green signal - Use Special Note: The sensor is a precision parts, severe vibration , fall , collision , overload , overvoltage , etc. , are very likely to cause permanent damage to the sensor or affect the accuracy and linearity , if you do not necessarily understand the parts , please buy carefully . After all, the resistance and capacitance transistors and other components compared to other electronic components to be more fragile . Resistance strain gauge pressure sensorMainly by the elastic body , the resistance strain gauge cable and other components , the internal circuit using Huygens bridge, when the elastic body is deformed under load , Resistance strain gauge ( conversion element ) film subjected to tensile or compressive strain deformation , its resistance will change ( increase or decrease ) , so that the bridge out of balance , a corresponding differential signal for subsequent measurement circuit and handling.

• Comprehensive error : 0.02% F.S
• Sensitivity :1.0 0.1mv / v
• Nonlinearity: 0.02% F.S
• Hysteresis: 0.02% F.S
• Importance of :0.02% F.S
